Graphite Series

AEROlite® Graphite sheets and tapes for high temperature applications with excellent chemical resistance and thermal conductivity.

Back to Products

Our Graphite Product Range

Select a product below to view detailed specifications and download technical data sheets.

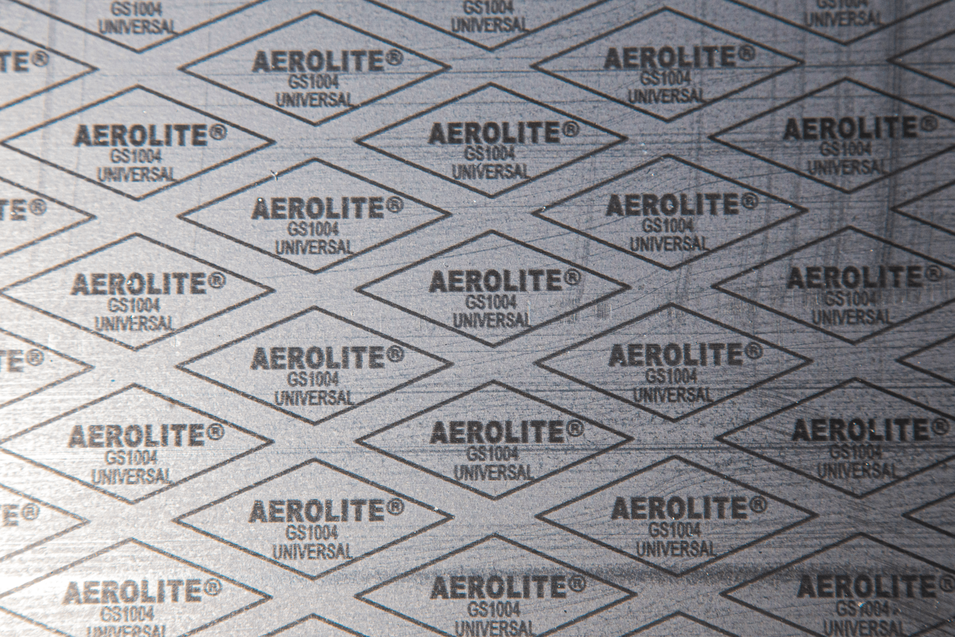

GS1004 - Pure Graphite Sheet

Natural pure expanded graphite for general sealing applications. Ideal for stuffing box rings, packing sets, and SWG filler. Comparable to Tombo® 1200.

Read More

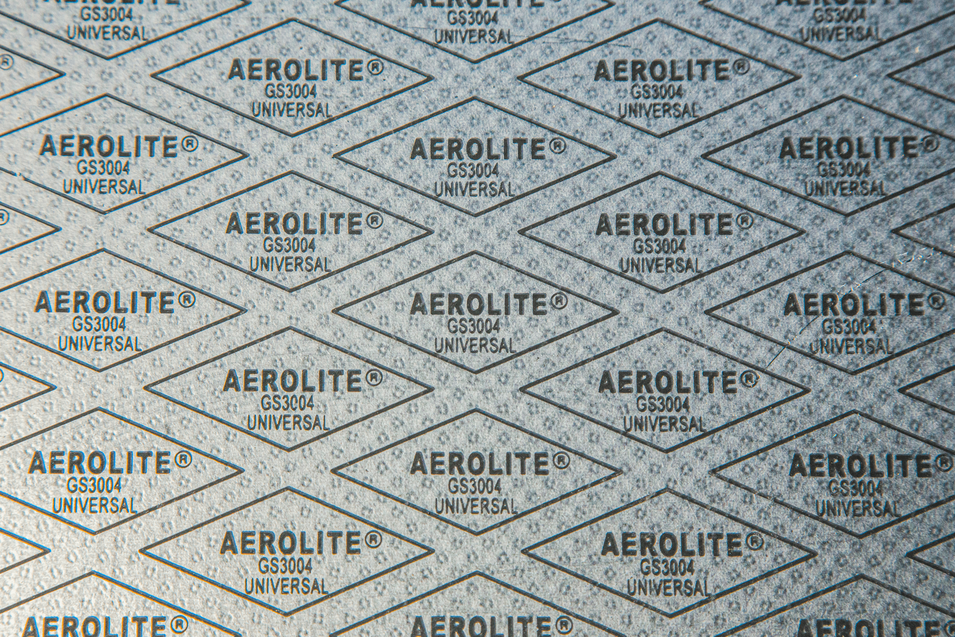

GS3004 - Tanged Insert Graphite

Expanded graphite reinforced with 0.1mm 316L tanged stainless steel. For high thermal and mechanical loads. Comparable to KLINGER® PSM.

Read More

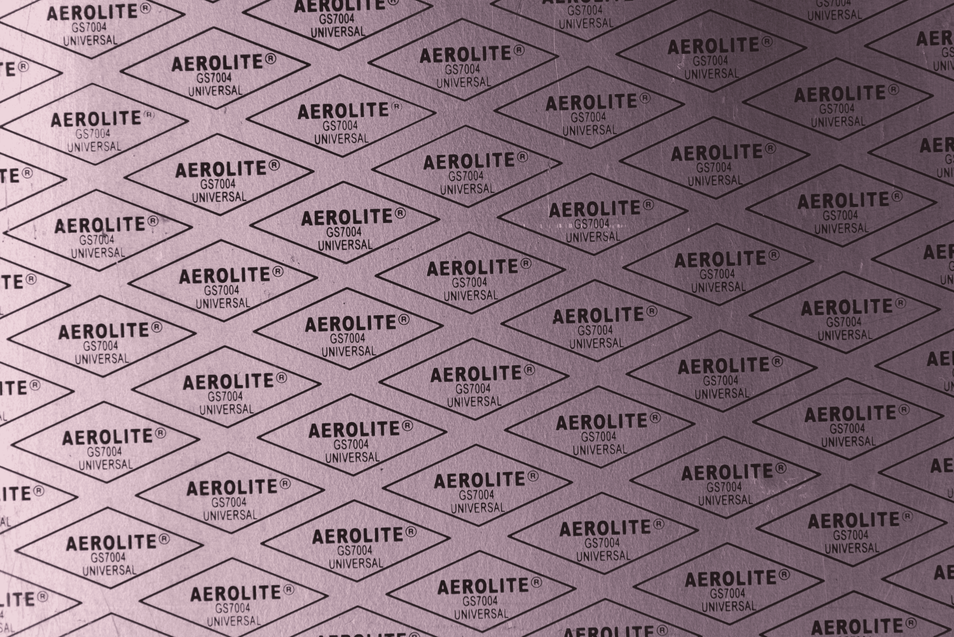

GS7004 - Foil Insert Graphite

Expanded graphite reinforced with 0.05mm 316L foil. Enhanced blow-out resistance for steam and heat transfer oil systems. Comparable to KLINGER® SLS.

Read More
PSM-300 - High-Pressure Graphite

Premium grade tanged insert graphite for extreme pressure hydrocarbons and aggressive industrial media. Comparable to KLINGER® PSM.

Read More
Pure Graphite Tape (Corrugated)

High-purity corrugated graphite tape with self-adhesive backing. Ideal for valve stem packing, emergency repairs, and pump shaft sealing.

Read More
Equivalent Brands

View KLINGER®, Lamons® & Tombo® cross-references for our graphite sheets.

Graphite Sheet Equivalent List

AEROlite®GS1004
GRAPHITE SHEET		GS3004
TANGED INSERT		GS7004
FOIL INSERT		PSM-300
TANGED INSERT
MaterialNatural pure expanded graphiteGraphite + 0.1mm 316L TangedGraphite + 0.05mm 316L FoilHigh-grade + 0.1mm 316L Tanged
ApplicationGeneral sealing, SWG fillerHigh thermal/mechanical loadsSteam, heat transfer oilExtreme pressure hydrocarbons
Equivalent Brands
KLINGER®-PSMSLSPSM
Lamons®LG-LLG-TCLG-SSLG-TC
Tombo®12001210-A1215-A1210-A

Typical values for a thickness of 2.0 mm. Equivalent brands listed are for reference only. The same grades, with CNAF, kammprofile and PTFE, are on the gasket cross-reference chart.
