AEROlite^® NA3100 CNAF
Technical Specifications

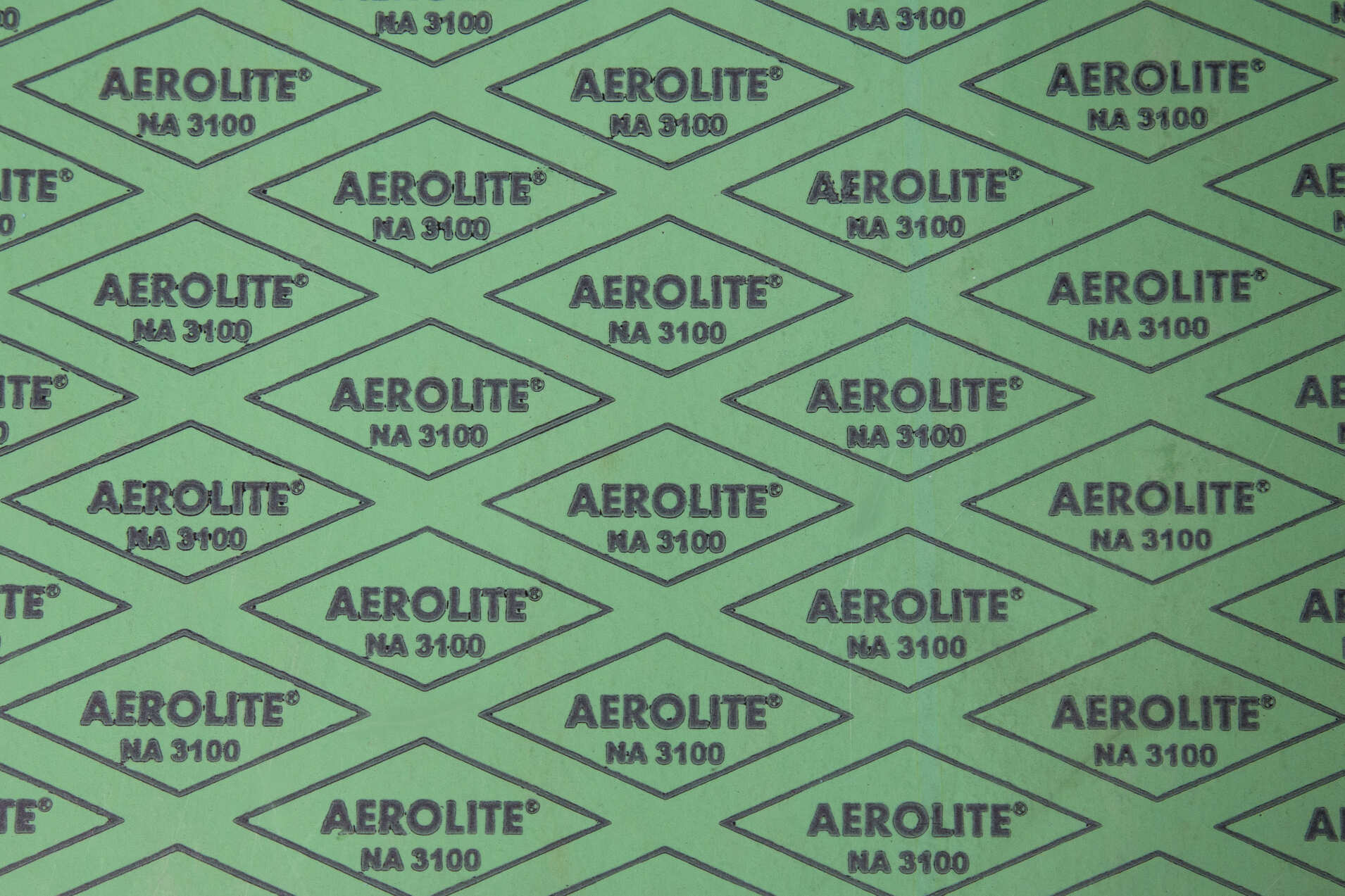

AEROlite NA3100 Green CNAF Gasket Sheet TBJ Johor

Request Quote (WhatsApp)orEmail Specifications

AEROlite^® NA3100 is an economy-grade compressed non-asbestos fiber (CNAF) jointing sheet made from organic fiber with NBR binder. It is specifically designed for general-purpose industrial sealing in low-stress conditions, such as low-pressure steam and water systems.

Physical Properties

Max. Peak Temperature	200 °C
Max. Operating Temperature	150 °C
Max. Operating Pressure	50 bar
Density (ASTM F 1315)	1.6 – 1.9 g/cm³
Compressibility (ASTM F 36 J)	7 – 17 %
Recovery (ASTM F 36 J)	≥ 40 %
Tensile Strength (ASTM F 152)	≥ 7 N/mm²
Gas Sealability (ASTM F 37 B)	< 1.0 ml/hour

Industry Equivalents

• Klingersil: C-4243
• Tombo: 1995
• Valqua: 6500
• Lamons: L420

Direct Manufacturing & Custom Cutting

At our Johor Bahru facility, we operate two high-speed ATOM CNC Flash Cutting machines. This allows us to provide:

Custom Sizes: We can cut any shape or dimension based on your spec details or sample.
No Mould Charges: Digital cutting means zero tooling costs for non-standard gaskets.
Fast Turnaround: With dual-machine capacity, we can fulfill urgent breakdown orders for Pasir Gudang and Pengerang industries within 24 hours.
